MAG888-HP High Performance Magnetic Flowmeter
- Accuracy: ±0.5% of reading. ±0.3% is available upon request.
- Damping Time Constant: 0～100s (90%) selectable.
- Display and Buttons: Large LCD display with backlight. Display the instantaneous flow, total flow, and alarm.
- Totalizer: Three built-in totalizers: forward flow totalizer, reverse flow totalizer and net totalizer.
- Output Signals:
- Analog output: Bi-directional, isolated 0～•10mA/4～20mA. Load resistor: 0～1.5ΚΩ for 0～10mA, 0～750Ω for 4～20mA
- Frequency output: Forward & reverse flow output with the frequency range of 1～5000Hz. The external voltage must be lower than 35V and the max output current must be 250mA when the transistor is turned on.
- Alarm output: Two isolated Open Collector Transistor (OCT) outputs for alarm signals. The external voltage must be lower than 35V and the max output current must be 250mA when the transistor is turned on. Alarm will be activated when the pipe is empty, the excitation circuits are broken or the volume of flow rate exceeds the value of designed limits.
- Pulse output: the OCT circuit is used for forward or reverse flowrate output. The upper frequency of the output pulse can be up to 5000cp/s. The relevant value of pulse is from 0.0001 to 1.0m3/cp. Pulse width can be set to 20ms or 50% occupancy. The external voltage must be lower than 35V and maximum output current must be 250mA when the transistor is on.
- Communication: RS232C, RS485 or HART Communication selectable.
- Power Failure: An anti-failure clock is built into the flow meter, which can save the power failure records for 16 times.
- Protection Class
- For electronic box: IP65 (outdoor)
- For sensor: IP65 (outdoor) or IP68 (submersible, only for remote type)
- Nominal Pressure: 0.6～4.0MPa
- Lining Material: Rubber, PTFE, Polyurethane, PFA
- Electrode Type: General type, scraper type or replaceable type
- Electrode Material: 316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum-iridium
- Medium Temperature:
- Integral type:-10°C～+80°C
- Remote type: Neoprene & Polyurethane Liner -10°C～+80°C; PTFE, PFA, F46 Liner -10°C～+160°C
- Ambient Temperature: -25°C～+60°C
- Ambient Humidity: 5～100%RH (relative humidity)
- Medium Electrical Conductivity: ≥15us/cm standard. ≥5us/cm upon request
- Measuring Range: 1500:1, flow rate≤15m/s
- Structure Type: Integral type, remote type, submersible type, ex-proof type

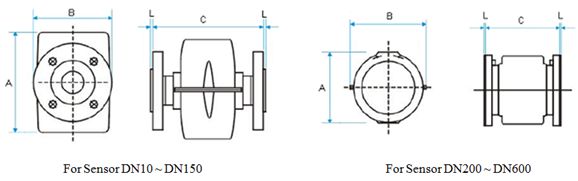

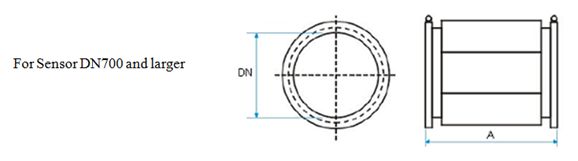

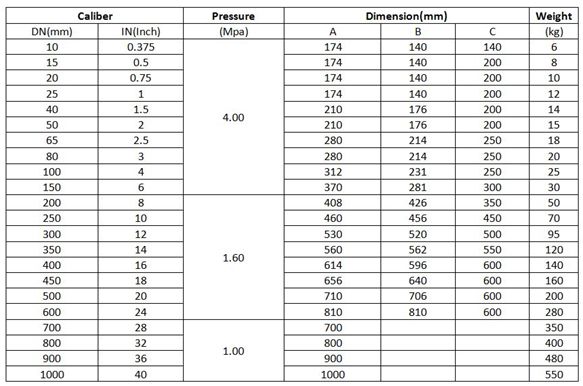

Dimension and Pressure Rating of MAG888-HP Sensor:

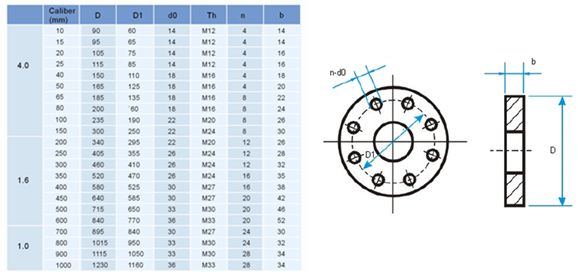

Flange Dimension and Pressure Rating of MAG888-HP Sensor.
MAG888-GP General Purpose Magnetic Flowmeter
Note: ANSI flange RF150 can be ordered upon request. By default, metric flange with dimension mentioned in the following table will be used.
MAG888-IN Insertion Magnetic Flowmeter
MAG888-SM Submersible Magnetic Flowmeter
