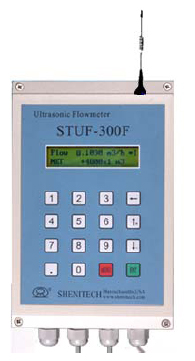

STUF-300FNx Wireless Ultrasonic Flowmeter


Download Brochure


Introduction

Accurate flow measurement for liquids in closed pipes
No moving parts to wear out, thus, long life span and require no maintenance

Abundant input / output resources

Low-power consumption

IP65 (NEMA 4X) weather-proof enclosure

Equipped with GSM or GPRS modem for wireless flow monitoring

- When equipped with GSM modem:

With a cell phone, one can check the flowmeter readings and working status anywhere

- When equipped with GPRS modem:

With a computer, one can program the flowmeter, monitor flowmeter status and read flow data continuously from a remote location. The data can then be record into a database

Optional PC software for flowmeter networking and data management

Software customization service available

For more details, refer to Brochure_STUF-300Fxx.pdf.



Application Examples

Remote leakage detection system

Solar-powered flow monitoring network

Water distribution network

Irrigation water resources management

Wireless flow measurement in industrial plants

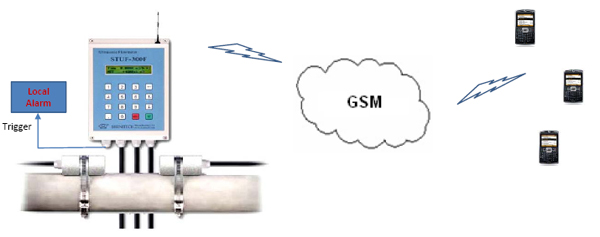

Example 1: GSM-based Leakage Detection System

System Functions:

A cell phone is able to program the flowmeter parameters, p p g p , such as leakage threshold, from a remote location.

The flowmeter will enter leakage detection mode at scheduled time and date.

When leakage is detected, the flowmeter sends short alarm message to a list of cell phones. It also sends a trigger signal to local alarm or SCANDA system.

A cell phone is able to query flow rate data anywhere.

Note: the flowmeter needs a SIM card with GSM service activated.

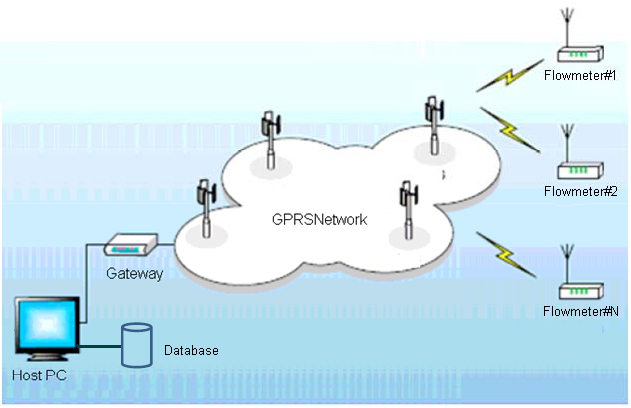

Example 2: GPRS-based Flow Monitoring Network

System Functions:

A centralized flow monitoring system.

Able to program all the flowmeters from a center location.

Able to collect flow data from a number of remote flowmeters.

Able to store data into a central database.

Able to indicate the working status of all the flowmeters.

Note: each flowmeter needs a SIM card with GPRS service activated
